lintseed hemp seed flax seed selecting machine

  • 1 - 1 Sets
    $4,580.00
  • 2 - 5 Sets
    $4,400.00
  • >=6 Sets
    $4,300.00
Model Number:
5XZC-3DX
Lead Time:
Quantity(Sets) 1 - 3 4 - 6 7 - 18 >18
Est. Time(days) 7 15 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
HELIDA
Application:
all kinds seed cleaning
Features:
double air screen vibration
Production Capacity:
3 TON PER HOUR
Warranty:
2 Years
Dimension(L*W*H):
3970*1800*2700
Power(W):
5.7 KW
After-sales Service Provided:
Field installation, commissioning and training
Voltage:
110V/220V/380V 440V
Certification:
CE SGS SONCAP CCVO
Weight:
1100KG
Package Size(L*W*H):
2.7*1.6*2M
Model:
5xzc-3dx
Advantage:
Independent Research
Keywords:
cyclone dust removal
Capacity:
3000kg/h
screen material:
galvanized steel
process range:
all kinds dry seed
Applicable area:
agritural seed company
Vibration speed:
400-600r/min
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic film, wooden box
Port
all ports in china
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 3 4 - 6 7 - 18 >18
Est. Time(days) 7 15 20 To be negotiated

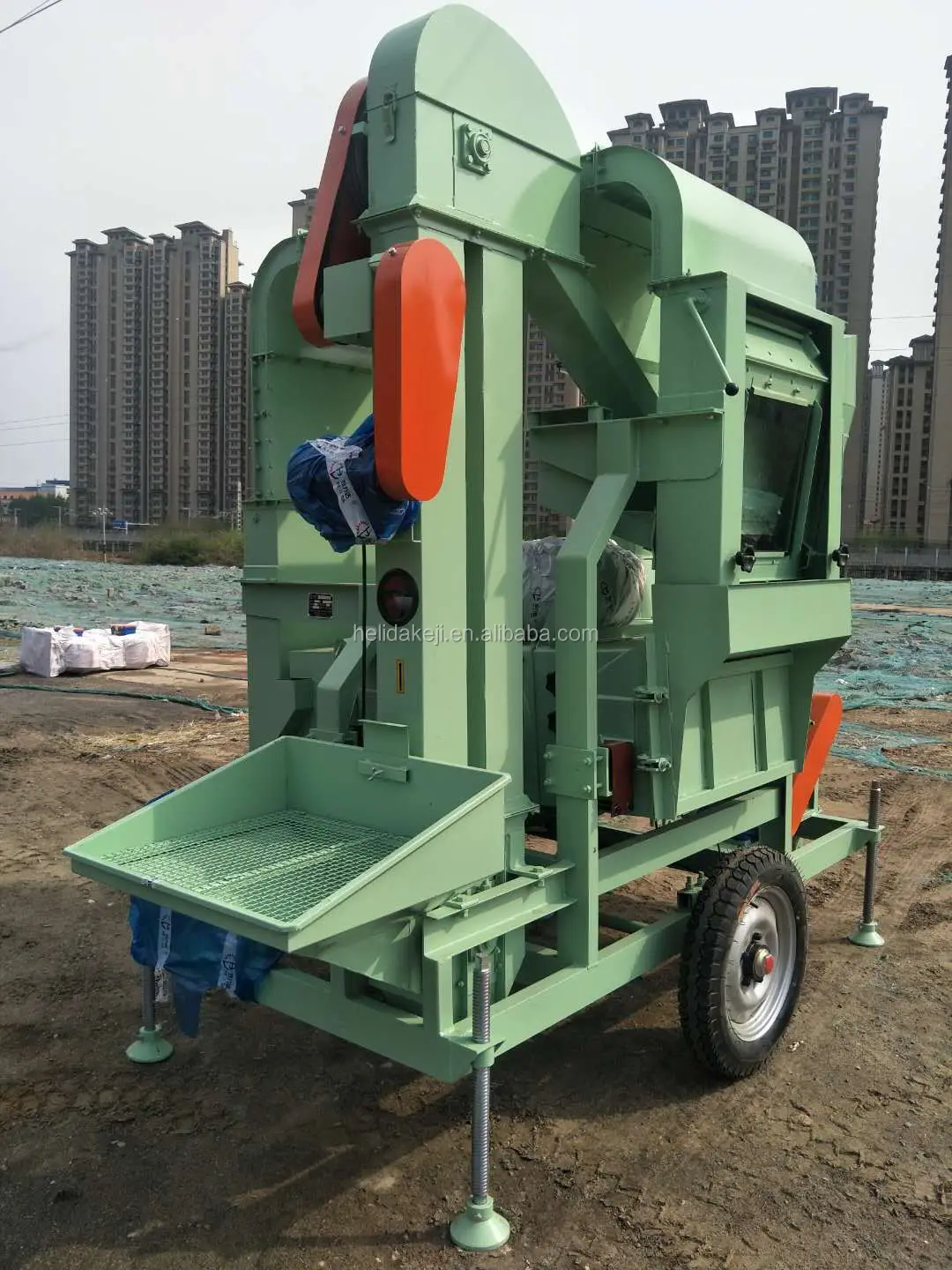

3 ton per hour air screen seed cleaning machine



Contact information



Product Description



1. Introduction:

Small capacity seed cleaning machine is mainly designed to remove light impurity like bran shell , leaves  twigs straw of seed dust , large and small foreign objects .The capacity of this seed cleaning machine is 3 mt per hour for wheat seed .Not only it is suitable for seed processing company ,it is also suitable for private farmer to process and clean seed .



2.Structure

This small capacity seed cleaning machine also called wheat cleaner or wheat processing machine has following main part:

· feeding hopper

· bucket elevator

· seed distribution box

· air cleaner or air screen

· pipe system

· cyclone dust collector

· air fan

· vibration screen or grader

· discharge outlet

· Mobile wheel

· seed cleaner frame



3.Control cabinet and motor:

· Machine control integrated in one cabinet ,which can control the machine work easily and conviniently;

· All the circuit breaker is used by famous brand, which can keep the control of seed cleaner work stable and gurantee safety work during wheat cleaning processing.

· All motor is used good quality motor which make the machine work stable and fluent.

· Voltage : 220v 380v 415V 440V  50/60HZ .Voltage range can be done according to customer application



4.Function:

By using this small seed cleaning machine ,the wheat seed could be very clean

1. Remove dust

2. Remove bran glume,leaves twigs etc light impurities;

3.  Remove larger or smaller foreign objecst than seed

       4. seed size grader separated.



5.Feature :

1) Compact structure,Easy operation

2)Movable model suitable for plant,field and remote area working;

3)High efficiency cleaning rate;

4)Customized sieve layers No.and sieve size for different grain and seeds.



6. Specifications:

5XZC-3DX


5XZC-3DS



Packaging & Shipping



customer visit

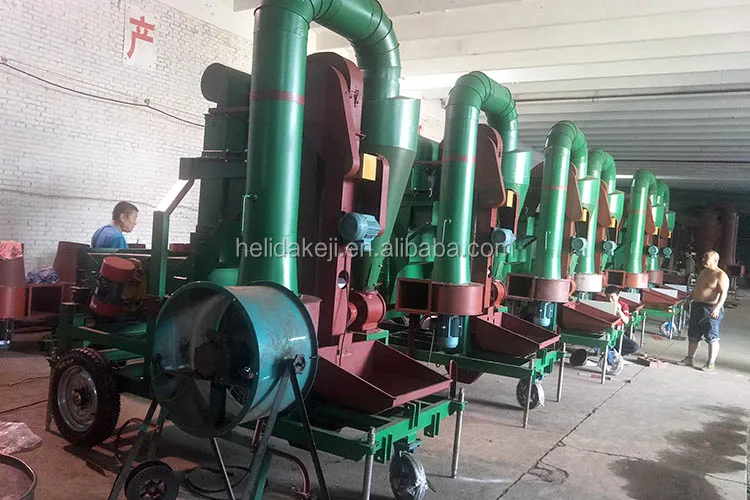

Real manufacturer

All machine in ready stock:

All spare parts in ready stock, can gurantee after sale service:

 our factory address, welome you visit our factory

we accept OEM, welcome your specifical inquirements.



ProducCertifications

we have SGS CE SONCAP CCVO PVOC SASO CO FORM A FORM E ECTN/BESC/CTN ETC.
