Seeds grains beans air cleaner

  • >=1 Sets
    $1,950.00
Model Number:
5XF-5
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
grain seed cleaning machine
Use:
grain seed air cleaning
After-sales Service Provided:
Engineers available to service machinery overseas
Applicable Industries:
Farms
Certification:
CE SGS
Place of Origin:
Hebei, China (Mainland)
Brand Name:
HELIDA
Condition:
New
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Factory standard packing
Port
Tianjin Port,China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

Product Application

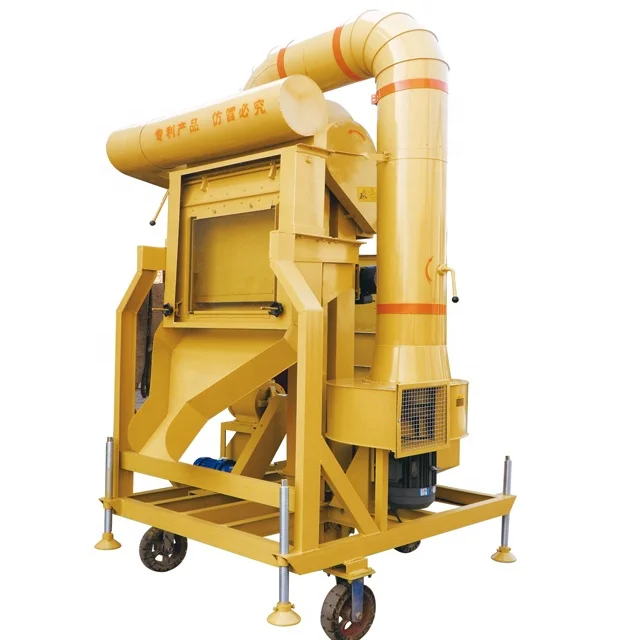

The Air Cleaner uses a combination of air to separate seed based on shape, and density. In all cases, the cleaning principles are the same. The grains are fed into the hopper where they are evenly distributed by a feed roller and transferred through a controlled gate on the top sieve. In the process the grains are subjected to primary aspiration by the use of air trunk which drains off chaff, straw, dust or deceased grains.After the separation, the graded material is subjected to air sifter and aspiration chamber where remaining light particles are sucked off by a strong upward draught of air. The graded material and the impurities are automatically discharged in separate chutes.
These machines are suitable for efficient cleaning of all types of grains and seed. Gentle feeder and the belt guard provide efficient cleaning of grain without causing any damage to the particles. High in functionality, The shoes of the machine can easily be replaced for different type of cleaning. Our range of 5XF series feed cleaner is specially designed for heavy-duty operation at the most economical prices.

Model
Productivity
Power
Weight
Size
Sieve dimension
5XF-5
5000kg/h
6.6kw
1000kg
1790×1800×3050mm
2000×1000×4mm

Main Features

(1)Robust machine of all steel construction.
(2)Cyclone aspirator fan.
(3)Low level feed hopper equipped with feed control gate.
(4)Specially designed buber ball to check sieve perforation clogging.
(5)Stepless variable air controls.
(6)Air Chamber, Sieve Deck assembly and spouts are self cleaning type.
(7)Belt guard provided.
(8)Sieve reciprocating provided by means of eccentric and connecting rods.
(9)Optional Accessories Available
(10)Dust Collector, Air Trunk, Surge Bin, Feeding Elevator.

Certifications
Operation
Seeds/Grains are fed into a feed hopper where they are evenly distributed by a feed roller and drop through a controlled gate on the air sifter and aspiration where light particles are sucked off by a strong upward draught of air top sieve. Before falling on Top Screen, grains are subjected to primary aspiration which drains off chaff, straw, dust, deceased grains etc. Material is then passed through two sieve layer for separation according to width and thickness. Sieve perforations are kept cleaned by specially designed rubber balls.After passing through screens, cleaned/graded material again passes through. Final product and impurities are collected separately through discharge chutes. We are the vaporizer Chinese supplier.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
