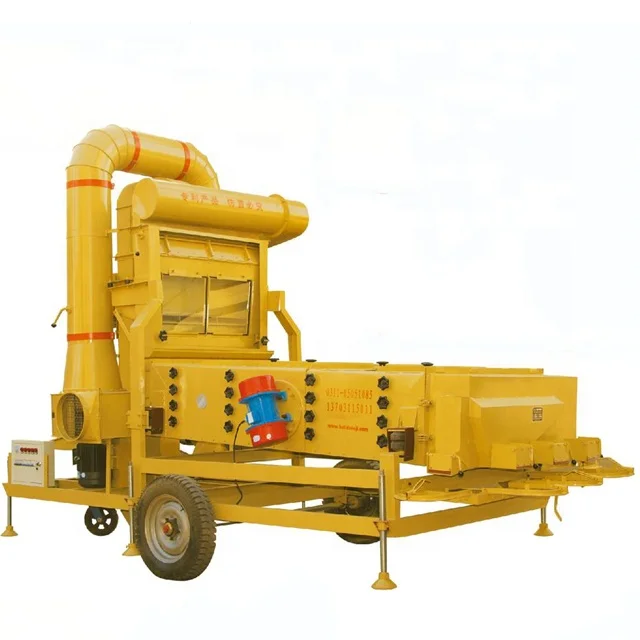

High efficient grain seeds cleaning machine

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $4,500.00
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
5XZC-7.5DX
Use:
grain seed cleaning
After-sales Service Provided:
Engineers available to service machinery overseas
Applicable Industries:
Farms
Certification:
CE SGS
Place of Origin:
Hebei, China (Mainland)
Brand Name:
HELIDA
Condition:
New
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Factory standard packing
Port
Tianjin Port,China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

The primary method of seed cleaning is the air-screen separator. It uses a combination of air and screens to separate seed based on size, shape, and density. These widely-use units come in a variety of models with two to eight vibrating screens. In all cases, the cleaning principles are the same. The grains are fed into the hopper where they are evenly distributed by a feed roller and transferred through a controlled gate on the top sieve. In the process the grains are subjected to primary aspiration by the use of air trunk which drains off chaff, straw, dust or deceased grains. Then the material is passed through sieve layer for separation according to their width and thickness. After the separation, the graded material is subjected to air sifter and aspiration chamber where remaining light particles are sucked off by a strong upward draught of air. The graded material and the impurities are automatically discharged in separate chutes.


These machines are suitable for efficient cleaning of all types of grains and seed. Gentle feeder and the belt guard provide efficient cleaning of grain without causing any damage to the particles. High in functionality, The shoes of the machine can easily be replaced for different type of cleaning. Our range of 5XZC series feed cleaner is specially designed for heavy-duty operation at the most economical prices.

Model
Productivity(kg/h)
Power(kw)
Weight(kg)
Dimension(mm)
Sieve dimension(mm)
5XZC-7.5D
7500
9.9
1850
5430*2060*3200
2400*1250*4

Main Features

(1)Robust machine of all steel construction.
(2)Cyclone aspirator fan.
(3)Low level feed hopper equipped with feed control gate.
(4)Specially designed buber ball to check sieve perforation clogging.
(5)Stepless variable air controls.
(6)Air Chamber, Sieve Deck assembly and spouts are self cleaning type.
(7)Belt guard provided.
(8)Sieve reciprocating provided by means of eccentric and connecting rods.

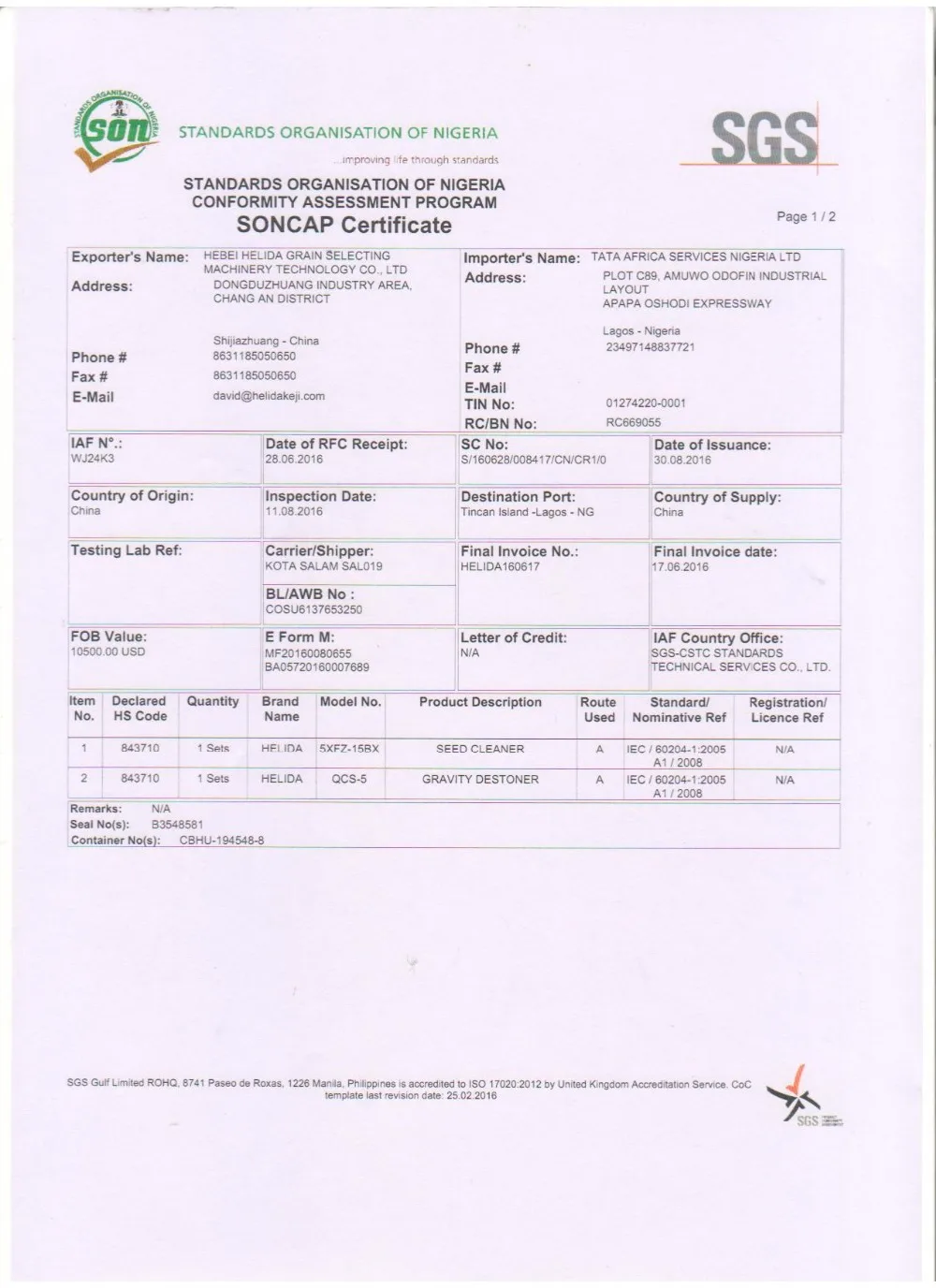

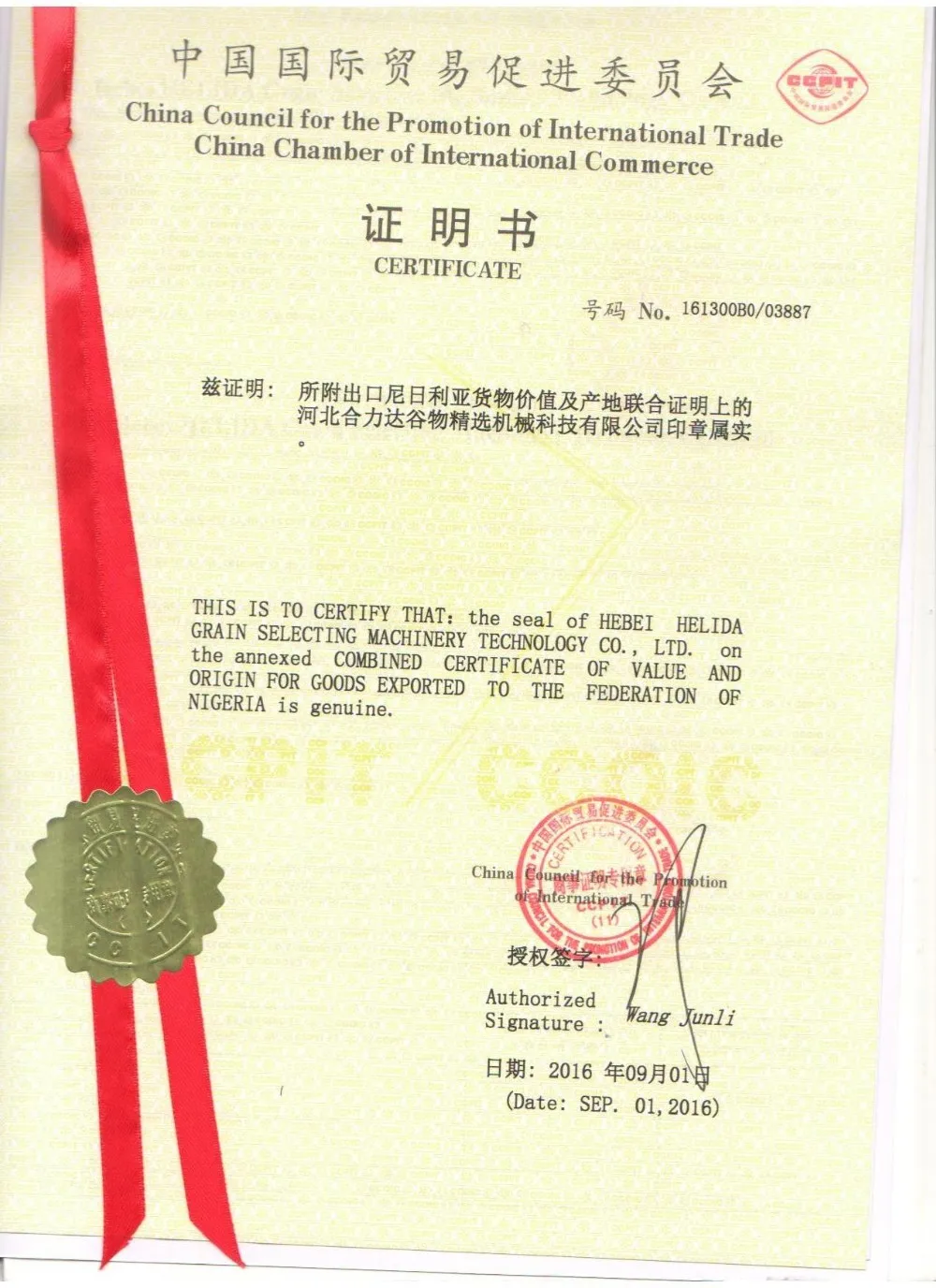

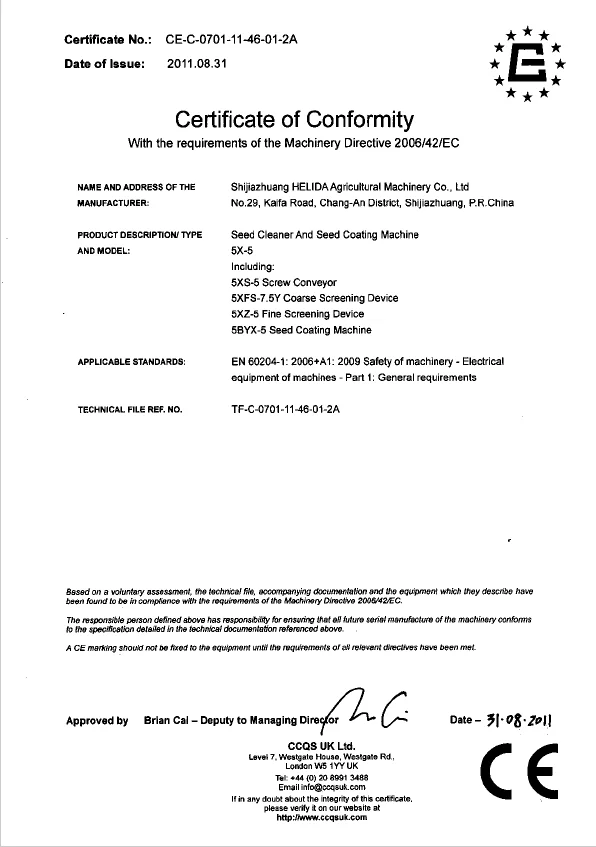

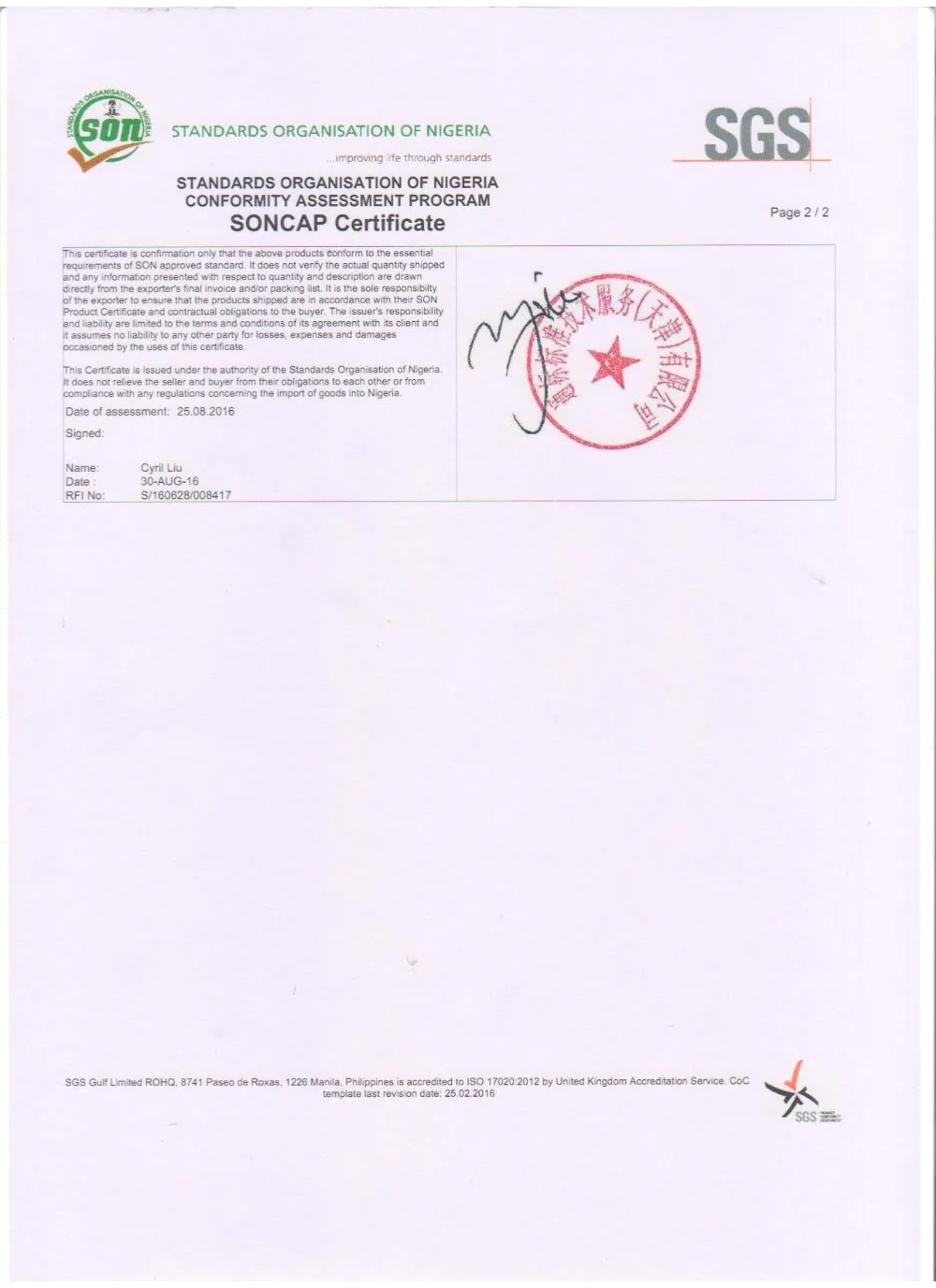

Certifications

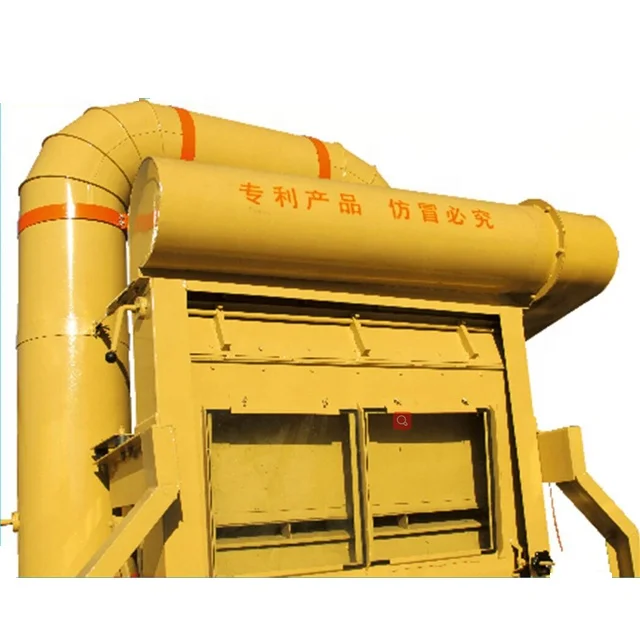

Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
