Grain Seeds Specific Gravity Separator

  • 1 - 1 Sets
    $7,445.00
  • >=2 Sets
    $7,299.00
Model Number:
8 5 10
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
gravity separator
Use:
separate blighted empty seed
After-sales Service Provided:
Engineers available to service machinery overseas
Applicable Industries:
Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops
Certification:
CE SGS SONCAP ISO
Place of Origin:
CHINA
Brand Name:
HELIDA
Condition:
New
Capacity:
8000KG per hour
Power:
14kw
Application:
separate blighted moldy smut seed
Equippment:
bucket elevator
Dimension:
4060*1800*2800mm
Weight:
3200kg
packaging:
by wooden box or factory standard packing
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
by wooden box or factory packing
Port
tianjin shanghai ningbo guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description

Grain Seeds Specific Gravity Separator



Product Description







1.Application and feature

This machine is to separate the material that has same size but different specific gravity.It could achieve better effect to separate materials of different specific gravity after material pre cleaning and grading.
By separating,the bud seeds,moldy grain,blighted grain,smut grain,immature grain,broken seeds and stone could be removed.Fine cleaned grain and seeds has a remarkable increase in thousand seed weight,cleanliness,germination rate and uniformity.
It is suitable for gravity separator of kinds of cereal grain coffee bean,cocoa bean,peanuts,corn,Peas,beans,rice,wheat,sesame,sorghum etc

2.Main structure of gravity separator


1.Fan motor, 2.Fan shaft,3.air casing,4.air shield,5.air adjusting handle,
6.Base seat,7.Driving motor,8.Spring support plate,9.Spring strip,10.Discharge outlet,
11.Vibrating frame,12.Vibrating screen,13.Spindle spring,14.air chamber,
15.Fixed splint,16.Eccentric gear,17.Sloping Steel Angle.
The blow type grain separating machine consists of Material feeding system,Vibrating screen system,air adjusting system and power drive system
2.1.Material feeding system:Material feeding hopper is connected with the discharge outlet of bucket elevator to guarantee continuous material feeding evenly.
2.2.Vibrating screen system:Two layers of sieve panels are fixed on special wooden frame.Wooden frame are connected with vibrating frame by bolts.Vibrating frame is connected with air chamber by canvas.The canvas can close or lock the air to guarantee air power.

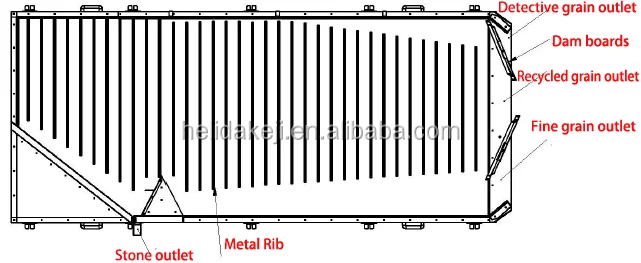

Vibrating screen system is the key part of blow type gravity separator.There is metal rib fixed on top of vibrating screen to help heavy material move upwards.Two dam boards are set on discharge outlet to separate different grade materials(fine materials,recycled materials and defective goods.On opposite side of feeding hopper,there is a stone outlet.Vibrating screen are fixed on vibrating frame by bolts,it can be unfixed to clean,repair and change if necessarily.



No.

Item

Parameter

1

Model

5XZ-8

2

Capacity

8000 Kg/h

3

Screen Area

4.3M2

5

Screening rate

≥99%

6

Chosen seed rate

≥98%

7

Broken rate

≤0.3%

8

Power

14 KW

9

Voltage

380 V

10

Weight

2200Kg

11

Dimensions(HxWxH)

3700x2300x1800 mm

Our Factory

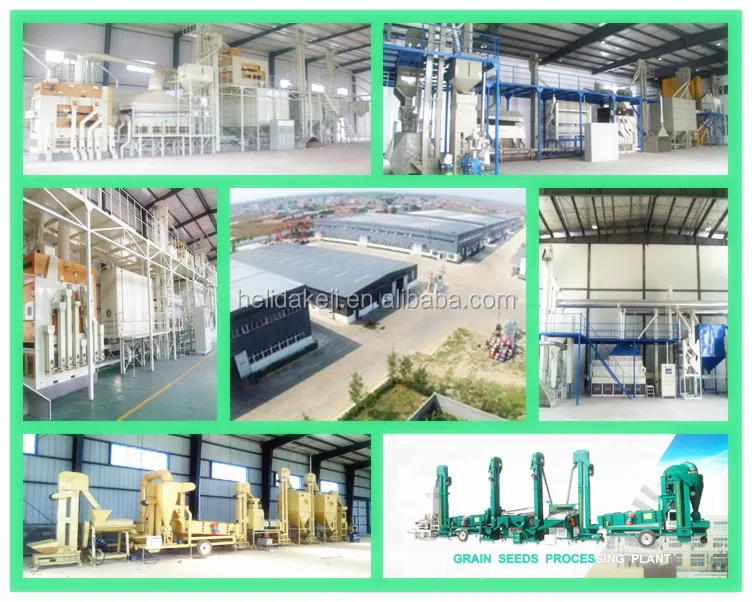

Hebei HELIDA Grain Selecting Machinery Technology Co., Ltd is a professional enterprise which engages in professional research, development and produce seeds processing machines, grain cleaning machines and agricultual byproducts processing machines. ”Service, Innovation, Professional, rigorous” is our operation principle, we’ve built a rigorous and professinal team which has technical branch who takes senior engineer as core, effective sale team and skillful production team, all of them have rich experience that is the backbone of this industry.

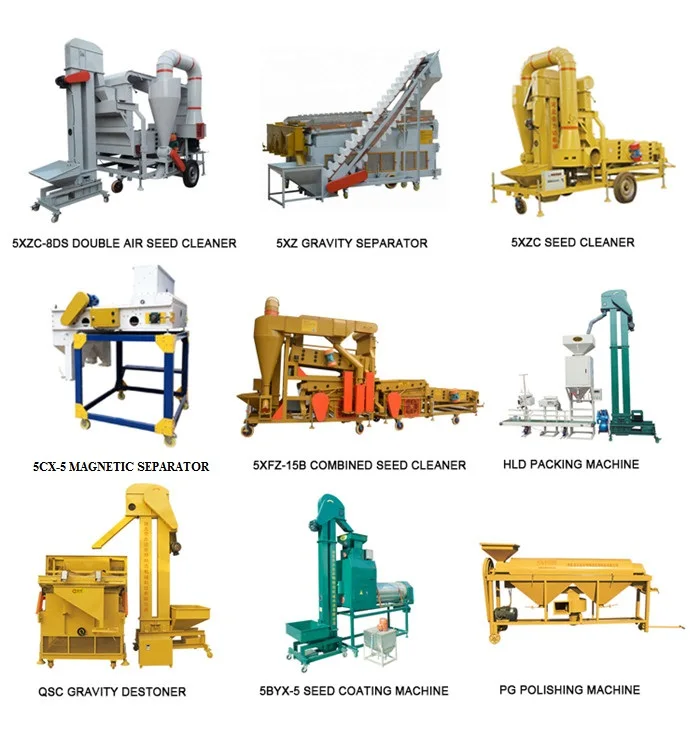

All of our products, such as Seed CleanerSeed Cleaning MachineAir Cleaner, cleaning machine, color sorting machine, fine cleaner, Gravity SeparatorGravity Destoner, seed coating machine, beans polishing machine, pigeon mixer, seed processing plant, sunflower seeds separating machine and whole set of seeds processing and agricultural byproducts processing machines have test by the advanced international examination equipment, they have stable quality, perfect performs and advanced technic. All of us pursue the faith of  “quality comes first, and service goes in advance”, we’ll supply a coordinated process service to satisfy our customer. We’ll keep promoting our professional skill, study and absorb the advanced international technics, for contribute to the agricultural machinery industry.

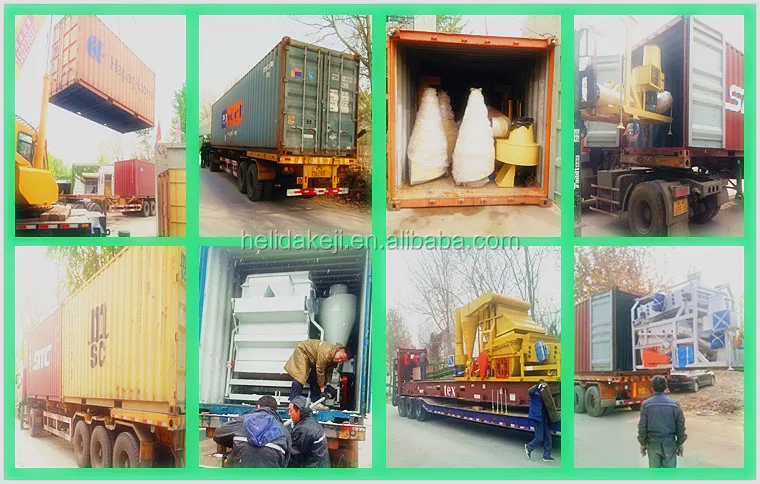

Loading container





Customers Visiting



Certifications



Related Products



FAQ



Q:  Are you the factory?
A:   Yes,We are a professional grain cleaning and seed processing machine manufacturer. We dedicated in this industry for 15 years. We can offer you competitive machines.

Q:   Do you accept small order and what’s your MOQ?
A:    Yes,We accept small order and trial order,MOQ is 1set

Q:   What is your payment terms?

A:   T/T, L/C, Western Union, Cash etc.

Q:   Can you ship to my country?
A:    Yes, no problem .
       Please let me know your destination port and I will check sea freight for you.

Q:   How do we visit your factory?
A:   HELIDA Machinery is located in Shijiazhuang City, Hebei Provice, China.20 minutes drive

     from ShiJiazhuang Zhengding International Airport,25 minutes drive from  ShiJiaZhuang

     Railway Station

Q:   How long is your delivery time?
A:   For single machine, we can use 6-10 days to manufacture machine.
      For processing plant, we can use 25-30 days to finish, We also need one day to test.
      We will book a fast ship for you.


Q:   I want to more machines , how can I get latest catalogue for reference?
A:   You can contact us by Trade Manager or Email ,
        We will give you our latest catalogue according to your information.

Q:  How can you guarantee the quality and the warranty?
A:  Quality control by incoming material inspection, 100% in-production check and random

check after packaging.
    Spare parts and technical solutions provided timely for machine failure.warranty is 1 year.

Q:  Do you help to install the machines?
A:  Geneally,the intructions are attached with products,if you need install,our enginners will

help you to do it but the cost is born by buyer.
